Bucyrus Erie 190B
Loading Shovel
|
|
OK, I've had a bunch of peolpe ask me how the door

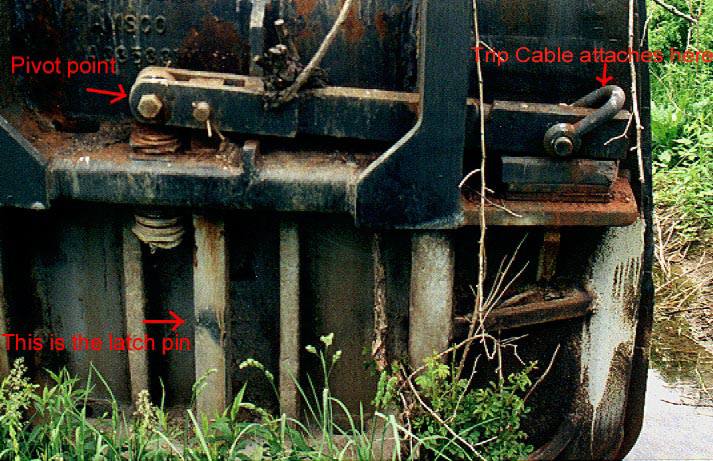

trip works on a shovel, well here's a good picture of the door, this
should answer a lot of questions.
|
The door is tripped by a 3/4 " cable, attached to
the clevis shown here. It pulls up on the Release lever, which
retracts the latch pin. After dumping, the dipper is pulled back
toward the machine, and gravity closes the door. |
I
